How to Choose the Right Diamond Dresser?

Have you ever wondered why your grinding wheel suddenly stops performing the way it should? Maybe the surface finish starts degrading, maybe the wheel loads up faster than expected, or maybe your dimensional accuracy starts drifting even though nothing has changed in your process.

In most machine shops, this mystery problem has one root cause:

The diamond dresser is not the right fit for the job.

A diamond dresser looks like a small tool, but it has the power to make or break your grinding performance. Choose the wrong one, and you get poor truing, inconsistent dressing, wheel glazing, unnecessary heat, and premature wheel wear. Choose the right diamond dresser, and suddenly your grinding wheel behaves like new sharp, cool cutting, accurate, and far more predictable.

Today, we’ll break down exactly how to choose the right diamond dresser, why it matters, and how it impacts your productivity. We’ll also discuss where tools like PCBN inserts fit into the bigger machining ecosystem because grinding and hard-turning often support the same manufacturing workflow.

Let’s begin.

Why Choosing the Right Diamond Dresser Matters

Your grinding wheel is only as good as your dressing tool. Even a premium wheel will fail to deliver if the diamond dresser cannot maintain its profile, sharpness, or contact conditions.

Here’s what a properly selected diamond dresser does for you:

• Restores wheel sharpness

• Removes glazing and embedded chips

• Improves surface finish

• Maintains wheel geometry

• Reduces grinding forces

• Lowers heat generation

• Ensures dimensional stability

• Improves grinding wheel life

• Enhances machine efficiency


This one tool influences grinding quality, tool life, cycle time, and even energy consumption.

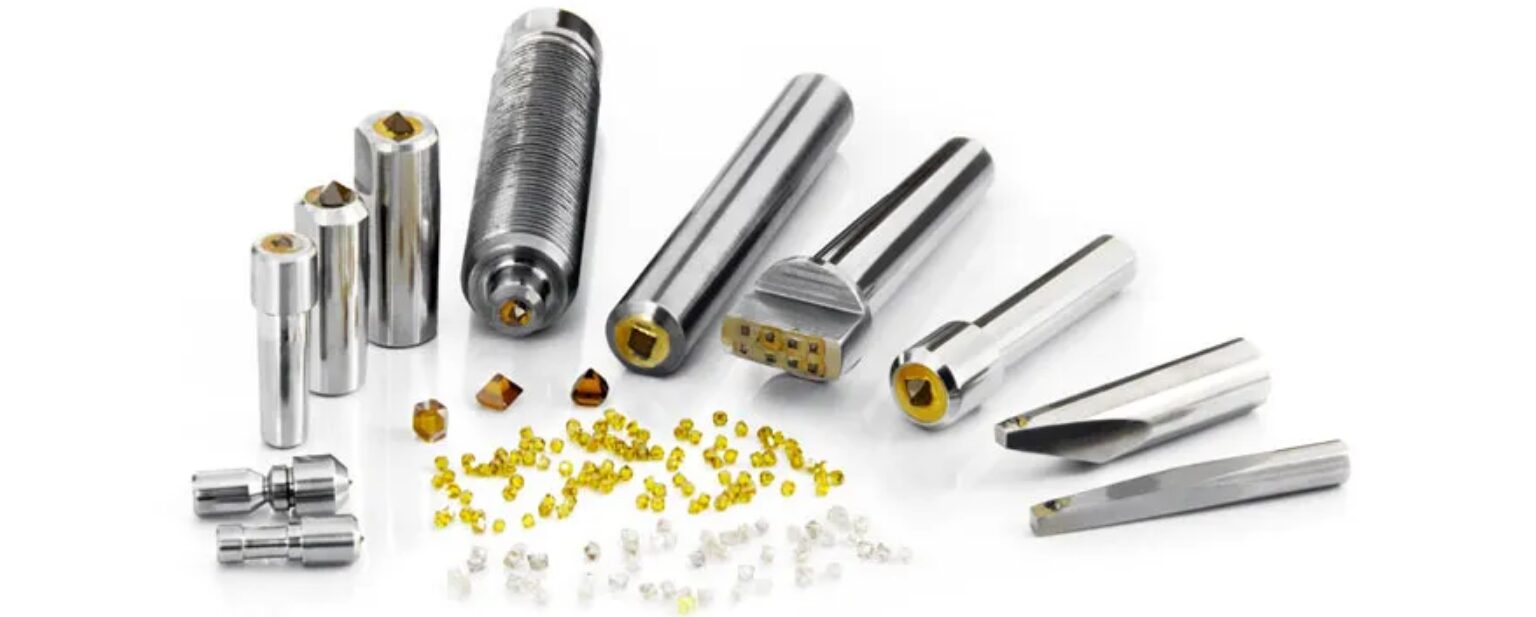

Types of Diamond Dressers: Which One Do You Need?

Before choosing the right diamond dresser, you need to understand the types available. Each type is designed for specific grinding tasks and wheel profiles.

1. Single-Point Diamond Dresser

This is the most common type. It uses a single natural or synthetic diamond mounted in a steel shank.

Best for:

• Straight wheels

• Light dressing applications

• Manual or CNC grinding

• Easy to use

• Creates sharp cutting edges

• Low cost


If your production involves simple truing and fast dressing cycles, this type of diamond dresser is usually enough.

2. Multi-Point Diamond Dresser

This dresser has multiple small diamonds set into the tip.

Best for:

• Heavy dressing

• Rough dressing

• Applications where uniform wear is needed


• Longer life

• Consistent performance

• Reduced risk of diamond fracture


• Not suitable for precise profiles

• Might produce a rougher finish


Use these when you prioritize durability and cost-effectiveness over precision.

3. Impregnated Diamond Dresser

Diamond grains are embedded throughout the dresser, so new diamonds appear as the outer layer wears off.

Best for:

• Large grinding wheels

• Steel, cast iron, and carbide grinding

• Continuous production


• Very long life

• Self-sharpening

• Stable dressing performance


If you dress wheels frequently, this diamond dresser offers the best long-term value.

4. Rotary Diamond Dresser

A highly advanced dressing tool used in high-precision CNC grinding.

Best for:

• High-volume production

• Complex profiles

• Tight tolerance grinding

• Hard materials


• Extremely accurate

• Long lifespan

• High repeatability

• Lower dressing forces


These are perfect for industries where profile accuracy is critical—like aerospace, automotive, and tool manufacturing.

How to Choose the Right Diamond Dresser: Step-by-Step Guide

Choosing the right diamond dresser depends on your grinding wheel characteristics, material, production volume, and accuracy requirements.

Here’s the complete checklist:

1. Identify Your Grinding Wheel Type

Grinding wheels vary in:

• Bond (resin, vitrified, metal)

• Grit size

• Hardness

• Abrasive type


Soft wheels need a stronger, more durable diamond dresser such as multi-point or impregnated types.
Hard wheels perform better with a single-point or rotary dresser for precision control.

2. Understand Your Dressing Requirement

Ask:
✔ Do I need profile accuracy?
✔ Do I need fast material removal?
✔ Do I need long life?
✔ Do I need better finish?

For precision: go for rotary or single-point.
For durability: choose multi-point or impregnated tools.

3. Match the Dresser to the Material Being Ground

Different materials react differently during grinding.

• Steel & stainless steel: single-point or impregnated

• Carbide: rotary dresser

• Cast iron: multi-point dresser

• Ceramics: rotary dresser


A good match reduces dressing forces and heat.

4. Consider Production Volume

Low volume jobs:
Single-point or multi-point diamond dresser

High volume mass production:
Rotary dresser or impregnated dresser

5. Select the Right Carat Size

The size of the diamond used affects efficiency.

General recommendation:

• Small wheels → smaller carat

• Large wheels → larger carat

• High-speed wheels → robust carat selection


A bigger carat ensures longer life and stable dressing.

6. Think About Your Required Surface Finish

Your required surface finish plays a major role in deciding which diamond dresser you should use. If you need a very smooth finish, a single-point dresser or a rotary dresser is generally the best choice because they provide precise and consistent dressing lines.

For applications where a moderate finish is acceptable, a multi-point dresser works well and offers a good balance between performance and durability. When the job demands a rougher finish or heavy dressing, an impregnated dresser is the most suitable option because it exposes new diamond grains as it wears, making it ideal for aggressive dressing. Choosing the right type directly impacts your Ra value and ensures a stable, predictable grinding process.

7. Evaluate Cost vs Performance

The cheapest dresser may cost you the most in the long run.
Instead, base your decision on:

• Dressing stability

• Accuracy

• Wheel life

• Heat control

• Tool life


A high-quality diamond dresser saves multiple times its cost by reducing grinding issues.

How PCBN Inserts Fit Into the Workflow

You may wonder why mention PCBN inserts in a blog about dressing tools?

Because in modern manufacturing, PCBN inserts and grinding often go hand-in-hand.

Here’s how:

PCBN inserts replace grinding in many hard-turning applications

Hard materials like hardened steel (55–65 HRC) can be finished with PCBN inserts, reducing the grinding load.

PCBN inserts reduce surface irregularities before grinding

A better pre-grind surface reduces:

• Wheel wear

• Dressing frequency

• Heat load


PCBN inserts help achieve near-grind finish

This means faster cycles and more consistency afterward.

PCBN inserts improve tool life and stability

That means fewer reworks, which also reduces unnecessary grinding.

In short, both diamond dresser selection and PCBN inserts selection contribute to your finishing strategy.

Common Mistakes to Avoid When Choosing a Diamond Dresser

Here are costly mistakes many shops make:

• Using the same dresser for different wheels
• Selecting a small carat size for large wheels
• Using manual dressers for CNC profile grinding
• Ignoring wheel bond type
• Dressing at incorrect angles
• Using worn-out diamonds for precision jobs

Avoid these and your grinding wheel will stay sharper for longer.

Signs You Are Using the Wrong Diamond Dresser

You should immediately re-evaluate your diamond dresser if you notice:

• Burn marks on workpiece

• Poor wheel cutting ability

• Rapid wheel wear

• Inconsistent dressing lines

• Wheel glazing

• Vibrations during dressing

• Poor surface finish

• Dimension drifting


A simple change in dressing tool can solve most of these issues.

Best Practices for Diamond Dresser Use

To ensure long life and reliability:

• Always maintain the correct dressing angle

• Dress at a consistent feed

• Never use an overheated dresser

• Rotate single-point dressers regularly

• Ensure proper coolant supply

• Keep your holder rigid and vibration-free


These small steps protect your diamond dresser and your grinding wheel.

Conclusion

Choosing the right diamond dresser is not just about selecting a tool it’s about ensuring precision, improving finish quality, reducing wheel wear, and maintaining consistent output. If you understand your wheel type, material, accuracy needs, and production volume, selecting the right dresser becomes simple and predictable.

And remember, both diamond dressers and PCBN inserts play a major role in how your machining and grinding workflow performs. When used correctly, they reduce downtime, prevent rework, and significantly boost production efficiency.
